Compatibility: The VenturiPulse is compatible with various submersible pumps, allowing for flexible use in disaster relief operations.
Easy Installation: A swivel coupling simplifies the setup of the system, enabling improved water quality with minimal effort.
Rapid Deployment: The VenturiPulse can be quickly deployed near the shore, making it ideal for prompt response to low oxygen levels in water.

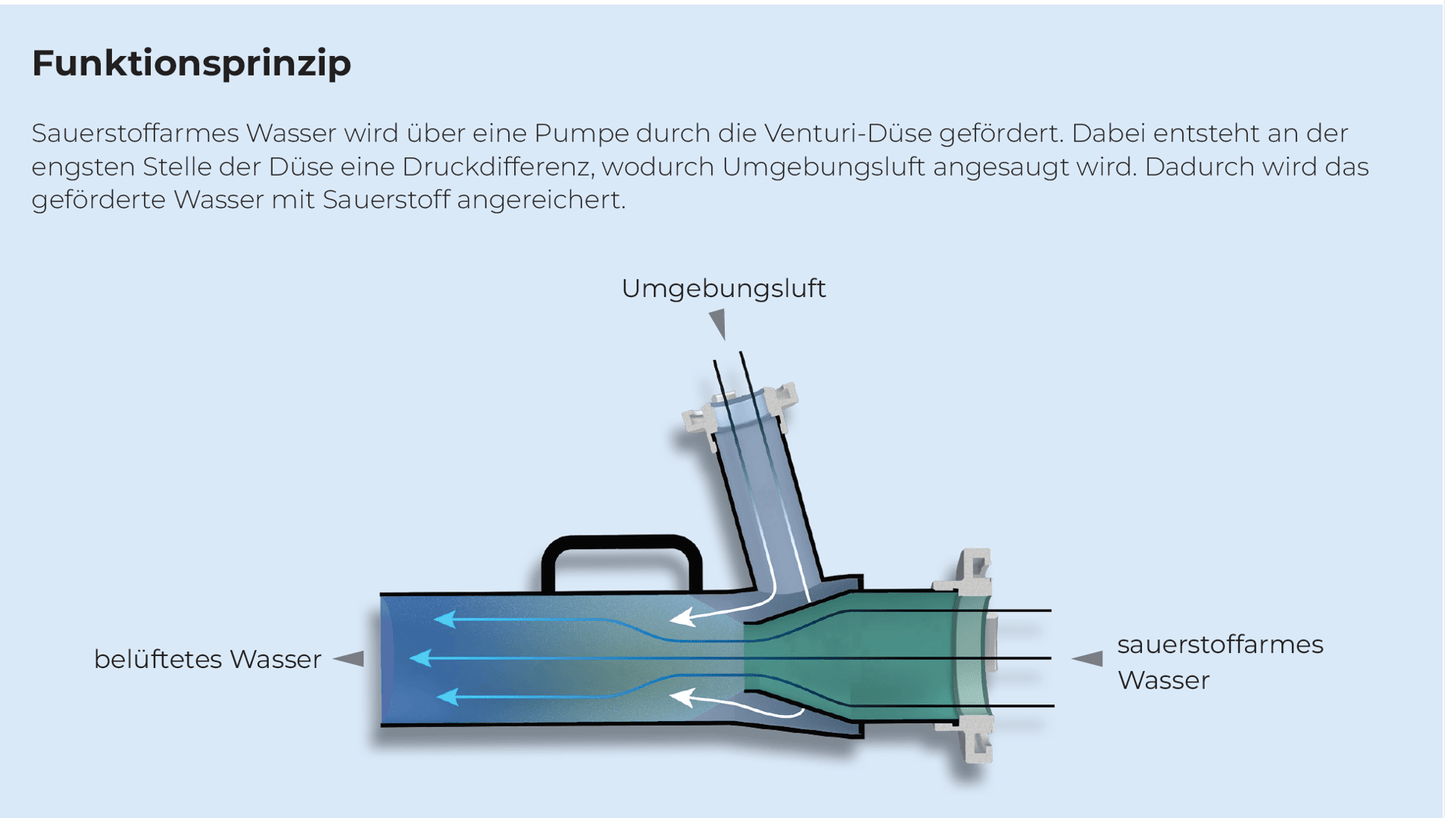

Efficient Aeration: Using the Venturi effect, ambient air is drawn into the water. This creates fine bubbles, which support effective oxygen enrichment.
Key Data & Facts
Technical Specifications
Dimensions: 560 x 360 x 190 mm
Weight: 7 kg
Material: Stainless Steel V2A
Maximum Pressure: 5 bar
Recommended Water Depth: 0.5 – 2 m
Compatibility
So far, the water aerator has been successfully tested and used with the following pumps:
Wilo-Drain TP 100E
Spechtenhauser Pumps GmbH Model: Chiemsee A
Spechtenhauser Pumps GmbH Model: Chiemsee B
Information on Pump Usage
With the Wilo-Drain TP 100E, up to 2400 l/min of ambient air can be drawn in using a C-suction hose. The exact results for the other two models are still pending, but the functionality has already been successfully demonstrated.
As a rule of thumb: The higher the flow rate, the more ambient air is drawn in. Additionally, the pump used must have at least a Storz-B coupling.
For all pumps with the same or better technical specifications as the Chiemsee B, the VenturiPulse will work.
Pumps with higher specifications than the Wilo-Drain TP 100E must not be used with the VenturiPulse.The use is at your own risk. More information can be found in the operating manual. However, we are constantly working on testing and releasing additional pump models.
Zusätzliche Informationen
We also offer compatible accessories such as suction hoses with various couplings and reducers to expand the applications of the VenturiPulse.
