Bautri Rescue Adapter System
Bautri Rescue Adapter System
Couldn't load pickup availability
Want to buy on account without Klarna? Just send us an email at info@inventied.de
- Free shipping
- Proven in use
Share






3 props + 1 Bautri = all possibilities
-
From construction props to tripod – versatile for rescue, lifting, lighting and more.
- Certified as PPE anchor device (DIN EN 795:2012 Type B, CEN/TS 16415:2013)
- Enables fall protection for up to three persons simultaneously (max. 100 kg per person)
- Maximum load capacity as lifting and support system (2006/42/EC – Machinery Directive): 2000 kg
- Weight: 15 kg
- Packed dimensions: 40 × 40 × 15 cm
- Manufactured in a certified facility (EXC3 according to DIN EN 1090-2:2019)
The Bautri system can be quickly assembled by a single person using a wrench. Adjustable supports make it suitable even for uneven terrain.

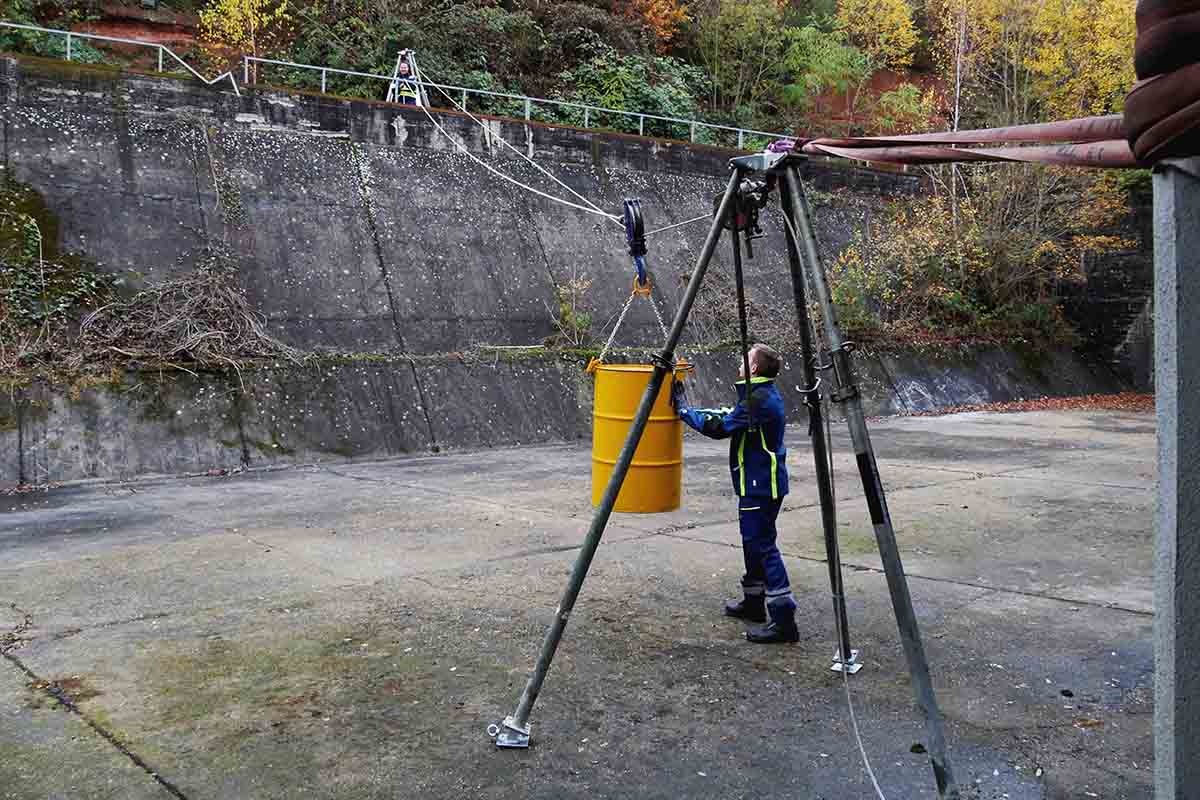

Applications of the Bautri Rescue System
-
In folgenden Einsatzbereichen lässt sich der Bautri Tripod Adapter anwenden:

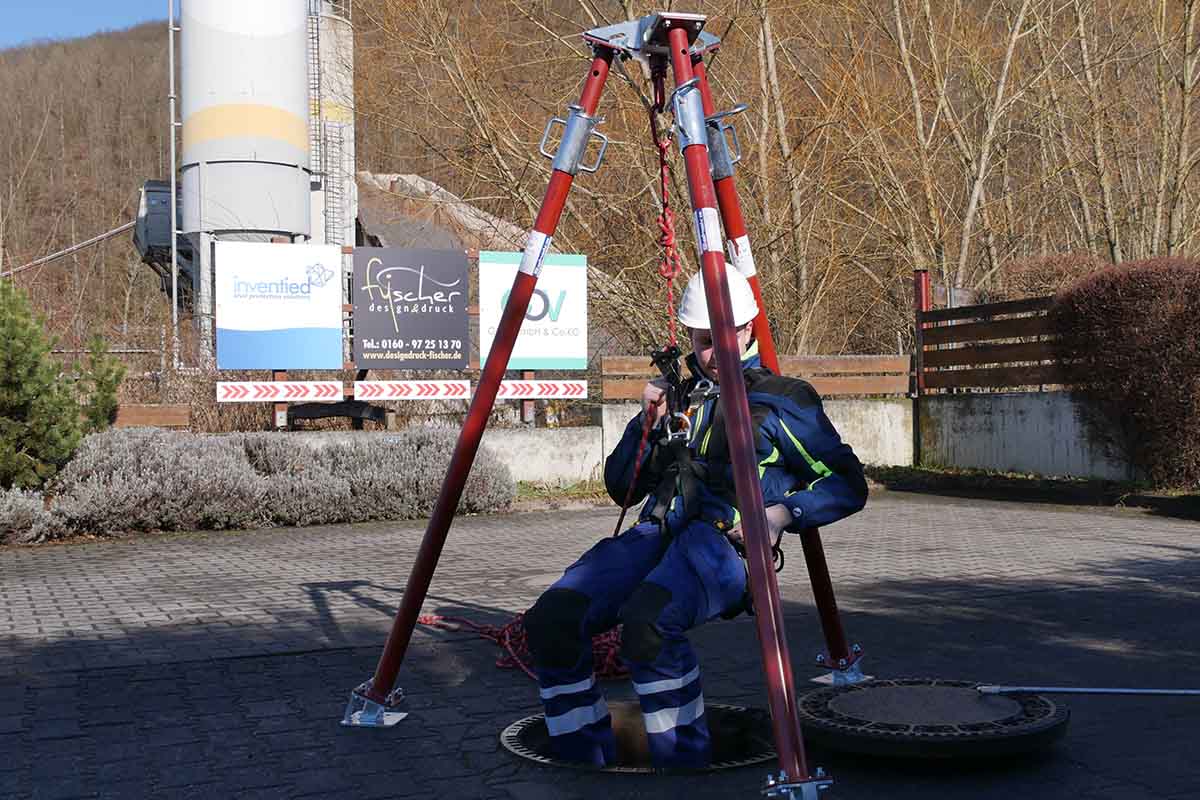

- Personensicherung für Schächte
- Personenrettung mit Höhensicherungsgerät oder Seilwinde
- Kabelbrücke Kabeltraverse
- Straßenüberquerungen
- Mobiler Pumpensumpf
- Flaggenmast
- Funkantenne & Blitzableiter
- Beleuchtungsstativ
- Kamerastativ zur Überwachung (z.B. für Polizei)
- Lichtmast auf Baustellen oder Einsatzstellen
- Schrägseilbahn
Stable Setup – Quick to Deploy – Highly Compatible
-

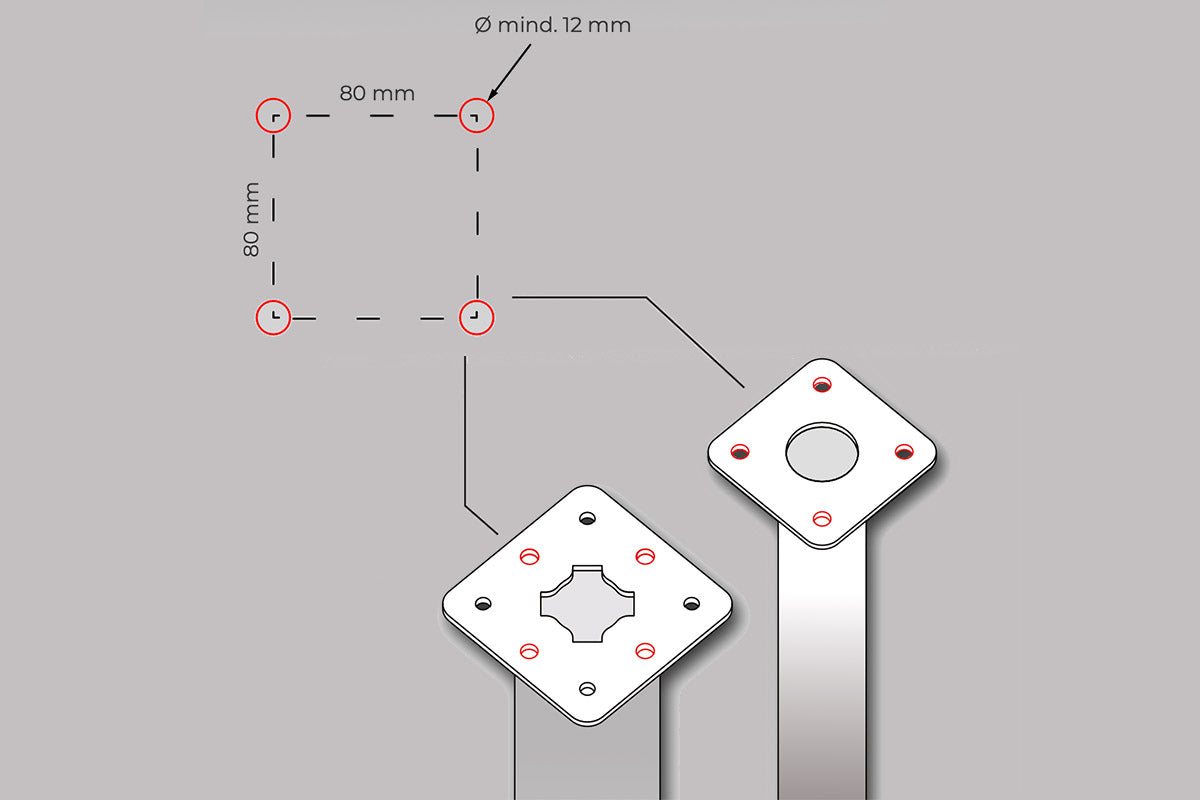

- The Bautri system is compatible with all standard construction props in accordance with DIN EN 1065, classes B, D or BD, as well as with spindle props such as the Ischebeck Titan HV.

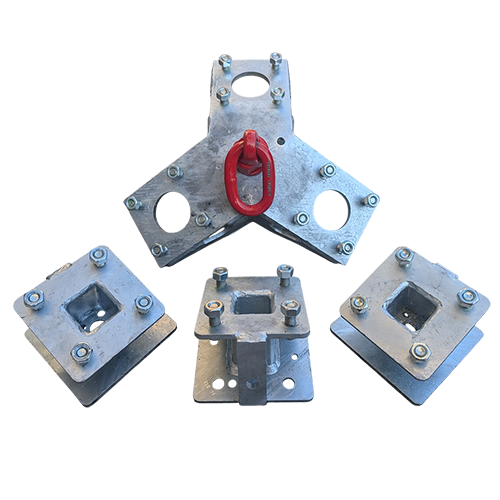

- The bolts for mounting the props are pre-attached to the adapter plates – only the nuts need to be tightened to assemble the tripod.
- Whether ground stakes, chains, round slings or webbing slings – the eyelets on the Bautri system’s feet allow for secure anchoring in a variety of ways. If needed, wheels or heavy-duty castors can be mounted to the base plates.

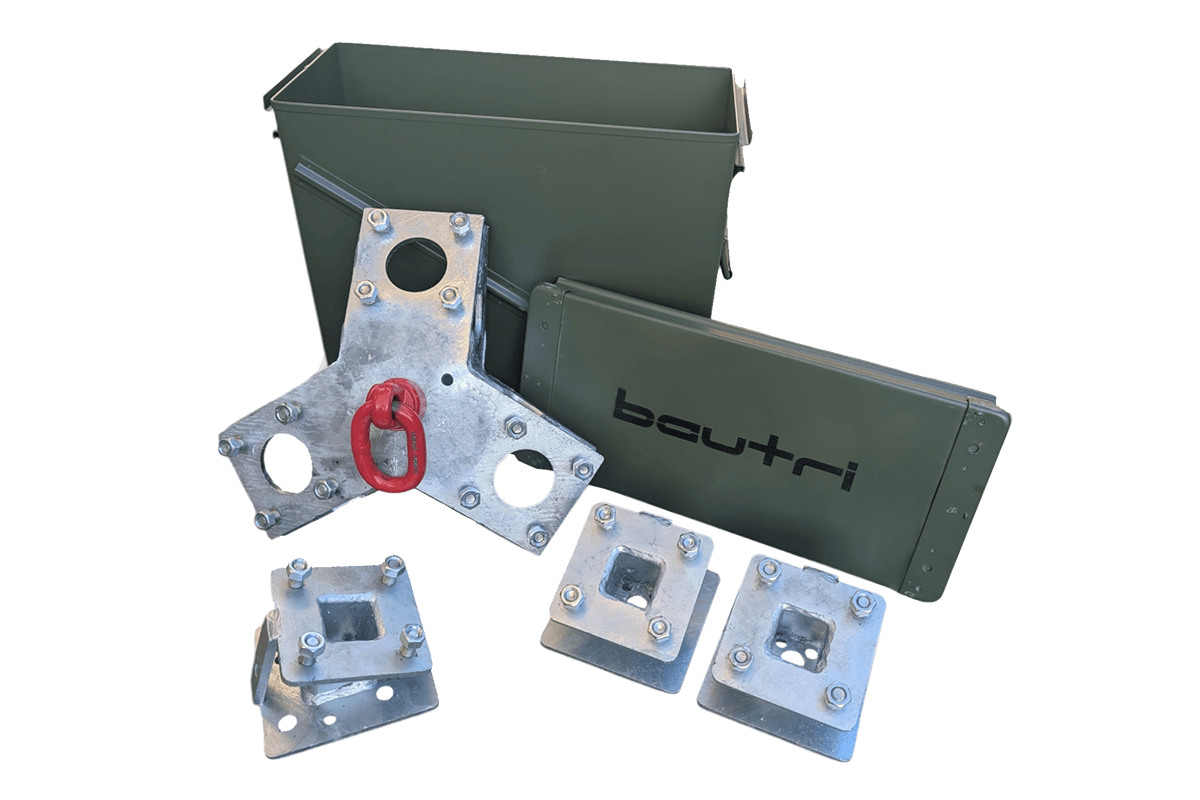

Optional transport case available
-
Kontaktseite öffnen
Robust, waterproof, and compact (47×21×37 cm): Offers space for a complete Bautri system including chain hoist, castors, lashing strap, logging chain, and accessories. Ideal for safe transport under the toughest conditions.
Applications Currently Under Approval
Disclaimer
- Certified Use
The adapter is exclusively approved for personal fall protection according to DIN EN 795. Any other use (e.g., as a carrying structure or load-bearing device) is at the user’s own risk. - User Responsibility
The user is obliged to independently verify the compatibility of the construction props (material, diameter, load capacity) and ensure proper assembly. Regular safety inspections of the entire system are mandatory. - Limitation of Liability
We assume no liability for damages or consequences resulting from misuse.
Photos are for illustration purposes only and do not constitute a guarantee of properties.
