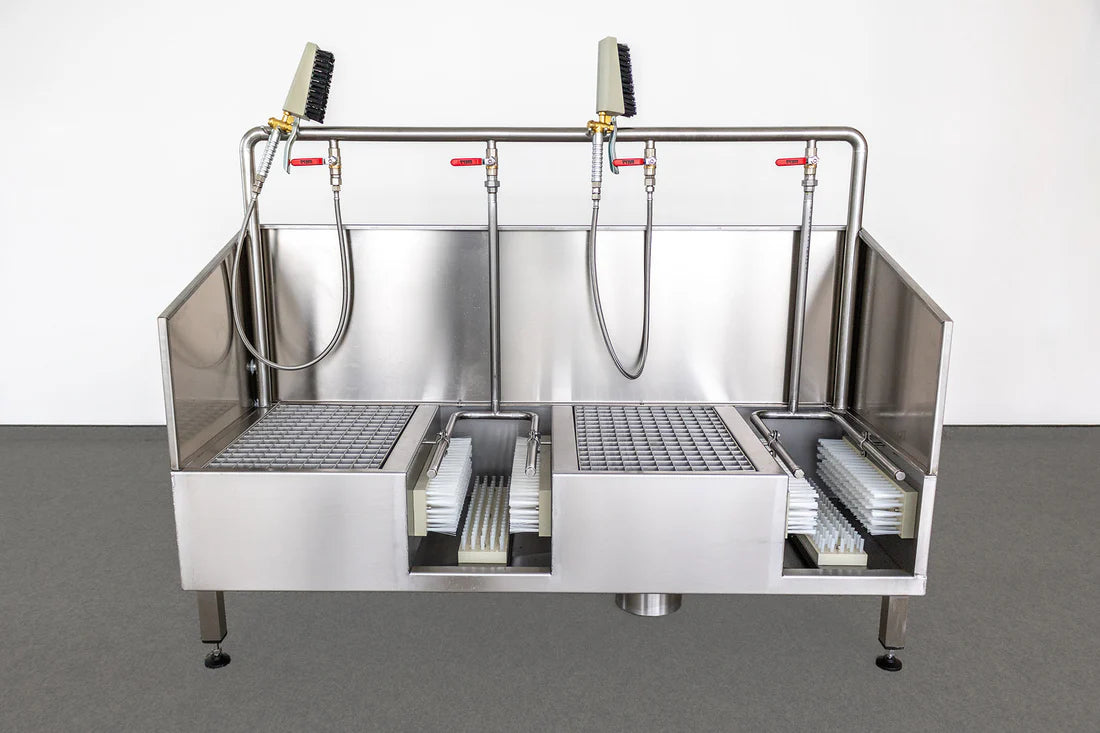

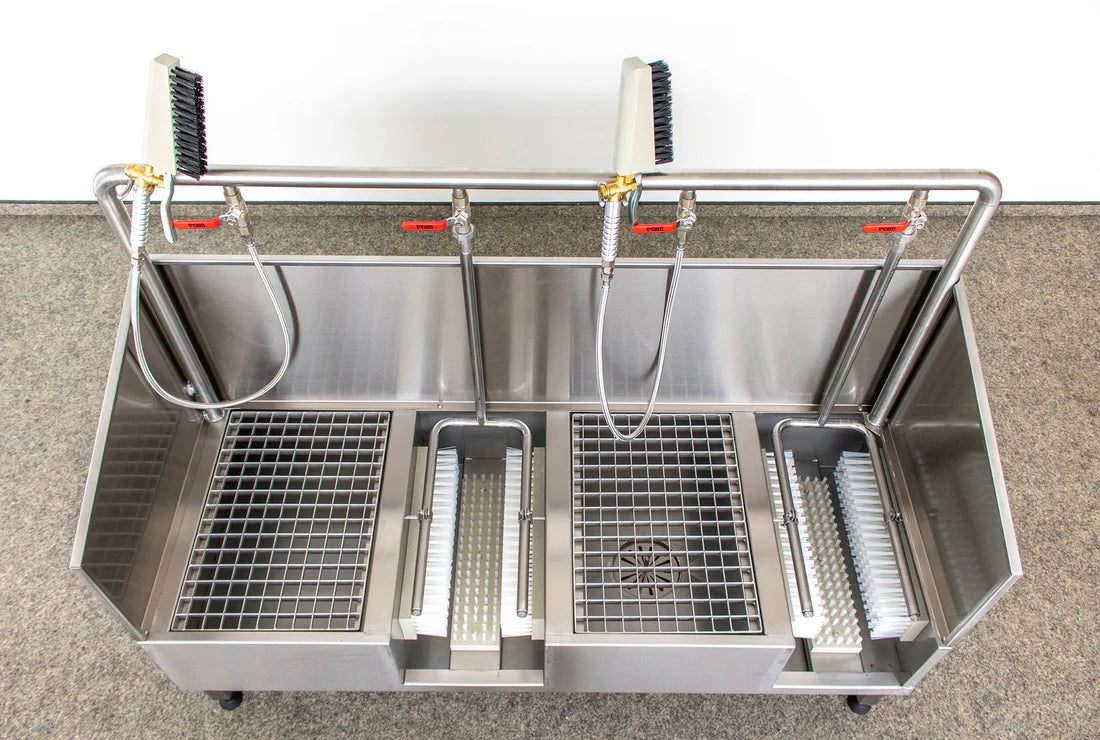

Boot wash station made of stainless steel
Boot wash station made of stainless steel
The boot wash station made of stainless steel was developed for use by THW, fire brigades, emergency services etc. and offers two cleaning stations.
Couldn't load pickup availability
Want to buy on account without Klarna? Contact us at info@inventied.de.
- Free shipping
- Tested in the field
Share
Boot wash station for heavy-duty use
-
The stainless steel boot wash station is ideal for THW, fire brigades, agriculture, and more. It ensures effective cleaning of work boots with various brushes.
- Dual cleaning stations: Two stations enable quick cleaning.

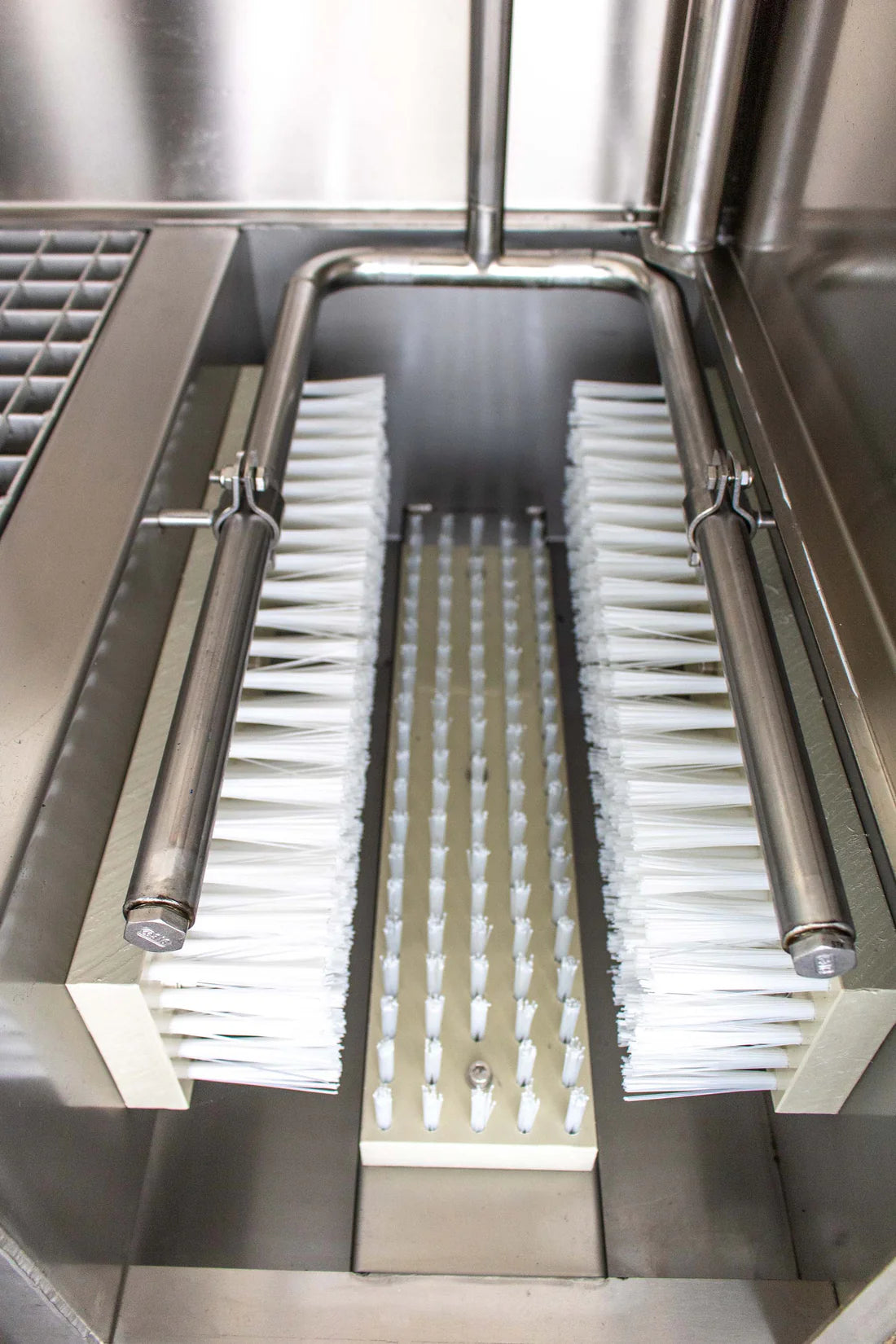

- Integrated stainless steel brushes: Three fixed brushes thoroughly clean boot soles and edges.
- Targeted water supply: Spray nozzles direct water onto the brushes, optimizing the cleaning process.
- Effective dirt removal: Dirt is quickly and thoroughly removed by the brushes, making it ideal for use in agricultural operations and fire stations.
-
Functionality of the Stainless Steel Boot Wash Station
-

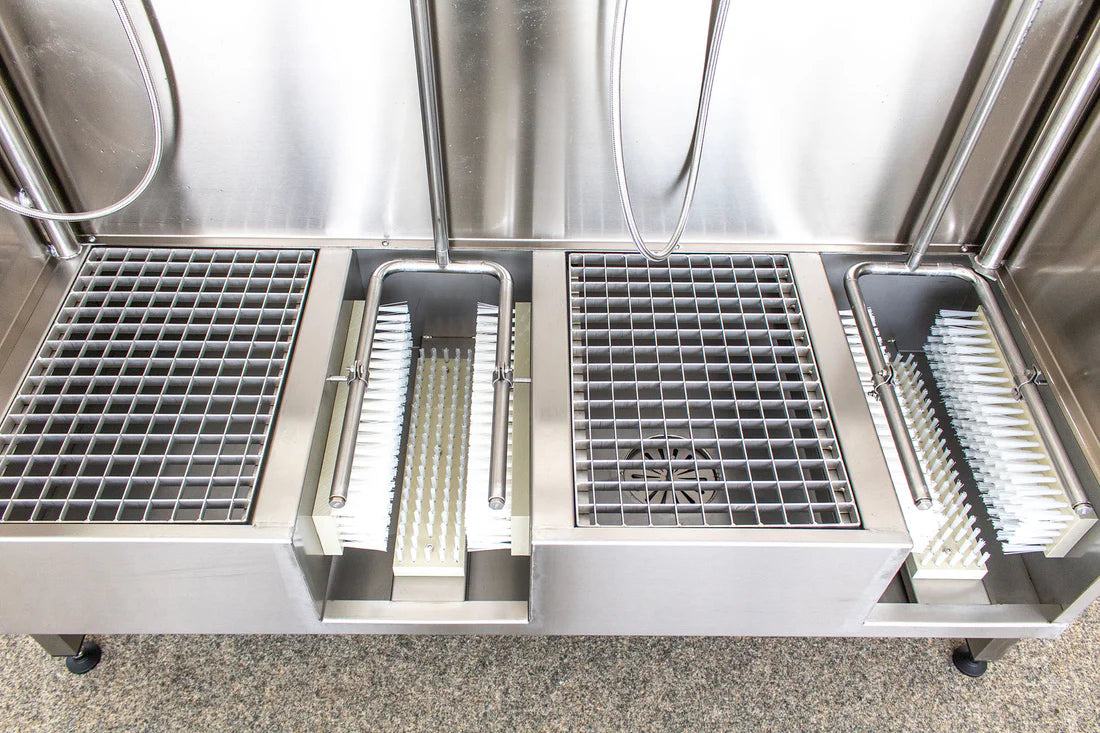

Both cleaning stations are equipped with a raised, removable grid as a stepping surface for the manual cleaning of the shafts and uppers of work boots. With one of the two water-fed hand washing brushes included in the delivery, not only boots and work shoes can be cleaned of all dirt, but other equipment can also be effectively cleaned by hand.A black-and-white separation is also possible.
-

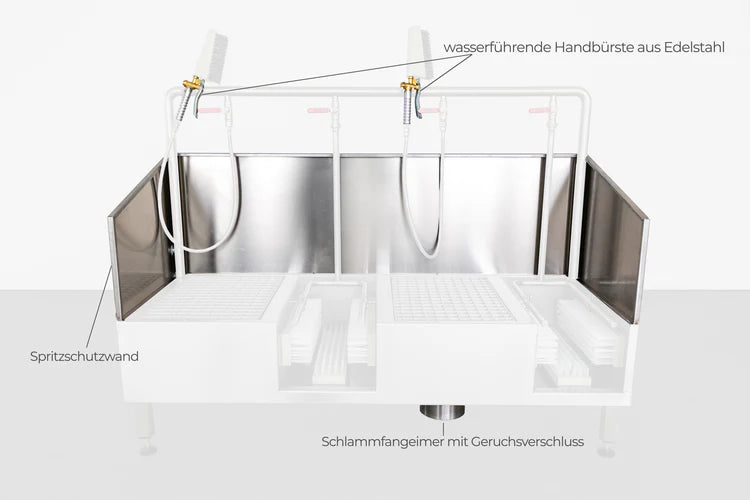

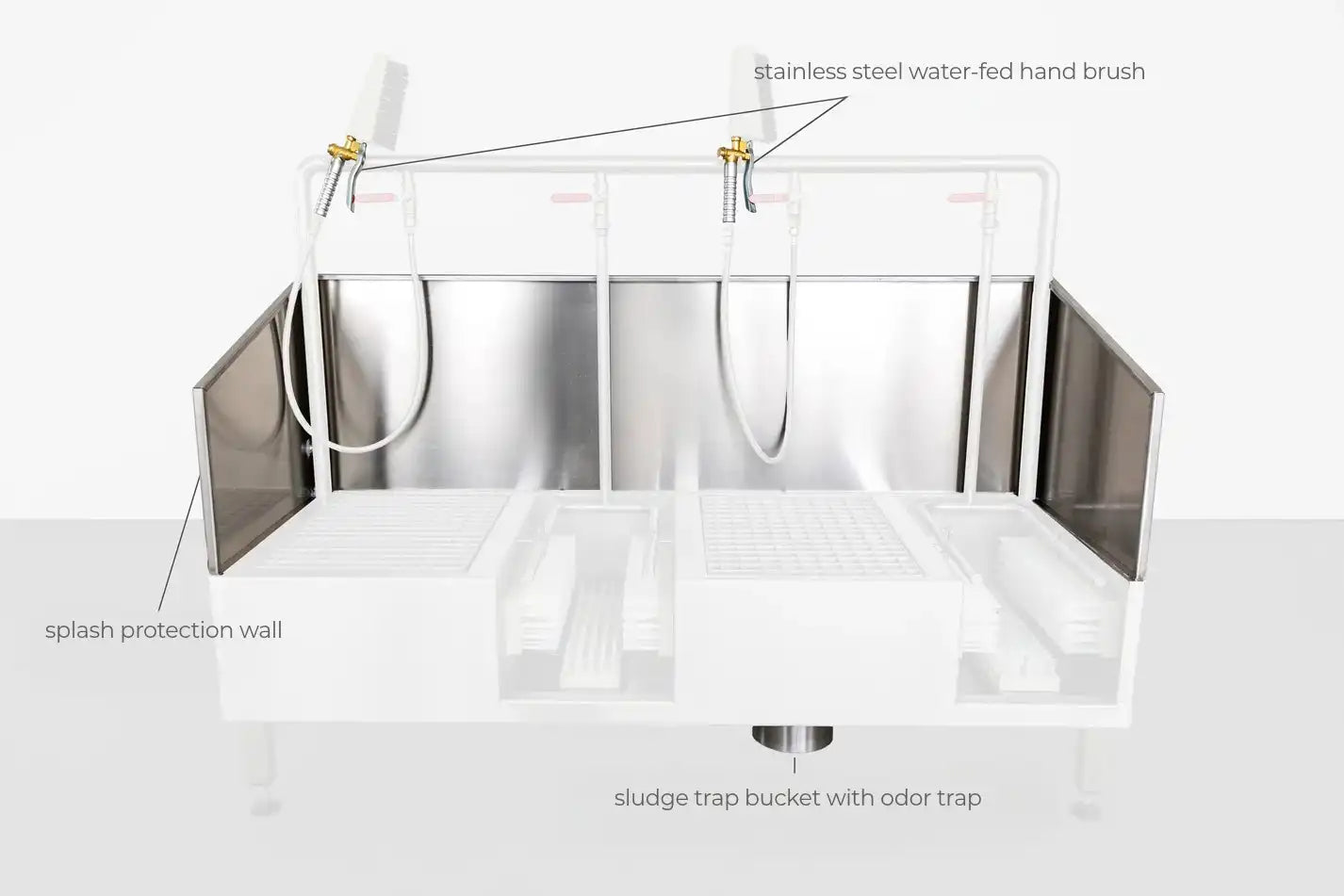

The used water is collected through a generous water trough or shower drain and is automatically directed to the wastewater system via a drainage pipe. To prevent clogging and unpleasant odors, we offer an optional dirt collection bucket and odor trap (see options). As an additional option, the boot washing station can be equipped with two side splash guards and a rear splash guard to prevent the surrounding area, sensitive equipment, and nearby people from getting wet and dirty due to splashing water.
Key Data & Facts
-
- 2 Cleaning stations for work boots
- With additional valve to regulate the water flow (additional splash protection)
- With specially mounted rotating spray bars with water nozzles (additional splash protection)
- Additionally, the spray bars are swiveling (additional splash protection)
- Boot support with removable stainless steel grid
- Brushes with water spray nozzles clean soles and sole edges optimally

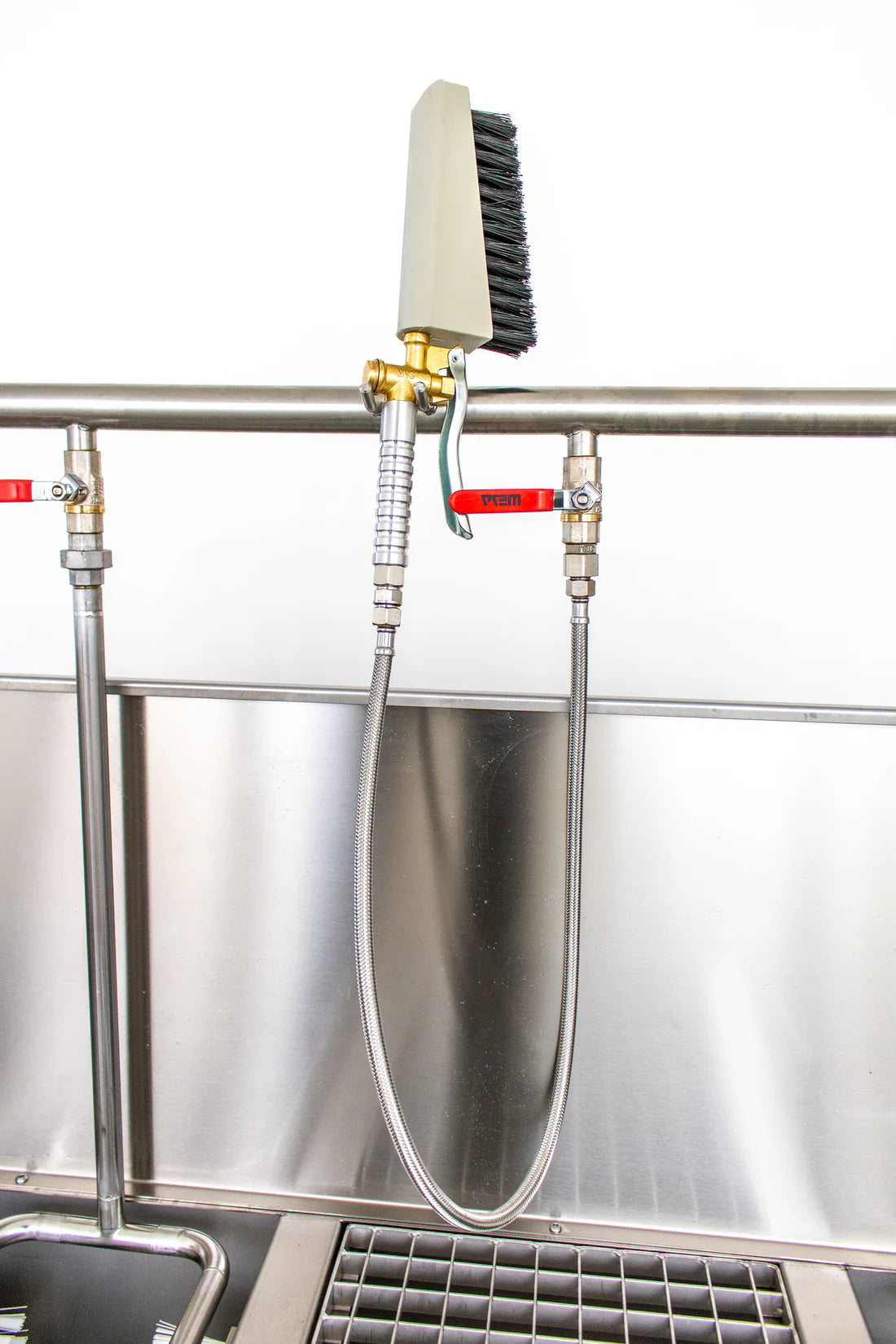

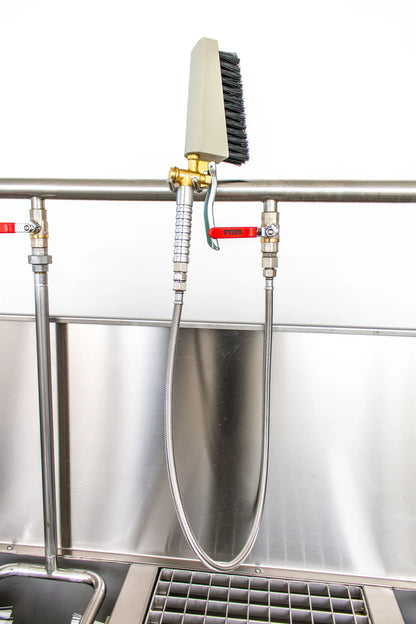

- Includes water-carrying hand brushes for thorough cleaning of boot shafts
- With generous stainless steel bottom tray for catching used water
- Mud collecting bucket with and without odor trap available as accessories
- Water-carrying hand brush made of stainless steel available as an accessory
- Includes side and rear splash walls
- No power connection required for the boot washing station
- Versatile areas of use for the boot washing station in agriculture, construction, wastewater industry, fire department, THW & more
-
Technical data
-
- Housing: Stainless steel
- Rust: Stainless steel
- Dimensions:1500 mm x 550 mm x 1150 mm (Width x Depth x Height)
- Water supply:(1 / 2 cleaning stations): ½" / ¾"
- Water drainage:NW50
- Power connection:Not required
- Weight:80 kg
The photos shown are for example configuration purposes only and may differ in their actual execution depending on the configuration.
-
What's the exact difference between the two brush models?
-
-
Two different brush models are available for boot cleaning – depending on your needs and area of use:
- Simple hand brush with hose connection
- Professional brush with water flow and control lever
Both versions allow for thorough, water-assisted cleaning of boots and footwear.
Can replacement brushes for the shoes be purchased separately?- Yes, please send your request to info[at]inventied.de
- Simple hand brush with hose connection
Frequently Asked Questions (FAQ)
Who is the stainless steel boot washing station suitable for?
The stainless steel boot washing station is ideal for fire departments, THW, agriculture, construction, and wastewater industries. It provides a hygienic and durable solution for cleaning service boots, work boots, and equipment – even in cases of heavy contamination.
How does the cleaning process work with the boot washer?
Two cleaning stations, water-fed hand brushes, and integrated stainless steel brushes with spray nozzles ensure effective cleaning of soles, boot shafts, and workwear. The removable grate provides a secure stand for manual cleaning.
Does the system support the black-and-white separation according to DGUV 205-016?
Yes, the boot washer allows for the cleaning of contaminated boots directly in the "black area." This ensures that the "white area" remains clean and complies with the guidelines for contamination prevention in operational service.
How is the drinking water protected during the use of the boot washing system?
An optional System Separator BA reliably protects drinking water from back contamination. It complies with the requirements of DIN EN 1717 and DIN 1988-100 and is approved for liquid category 4. For more information, please email us at info@inventied.de.
Where does the dirty water flow during the boot cleaning process?

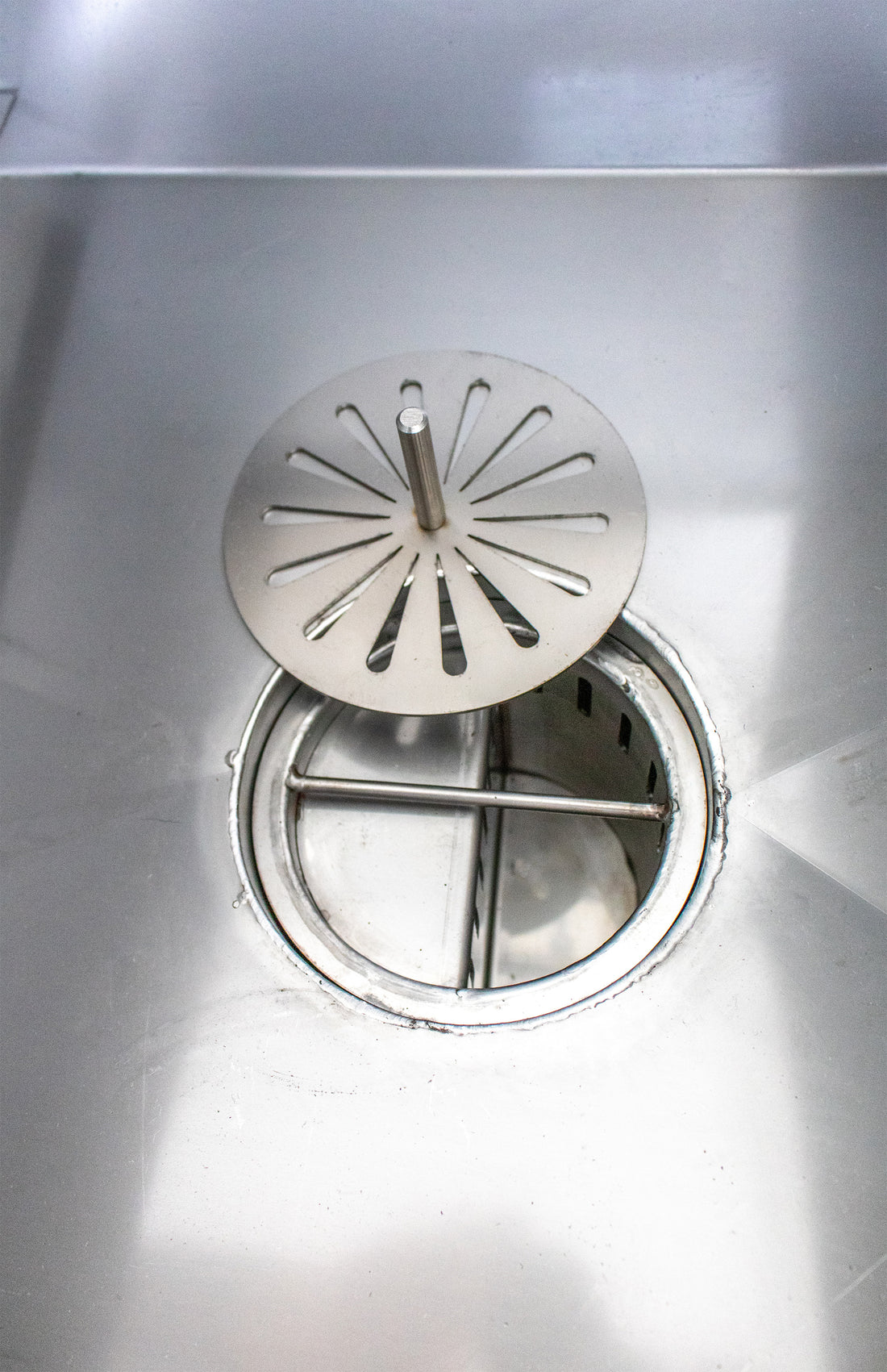

The dirty water is collected in a gutter and directed through a drainpipe. An optional dirt-catching bucket, with or without odor seal, prevents clogs and unpleasant odors.
What is the maximum allowed length from the connection to the water outlet?
The 2-meter rule applies here (according to DVGW W 543). Therefore, the hose from the mounting coupling to the water outlet must not exceed 2 meters in length. → For this reason, the system should not be connected using a hose longer than 2 meters.
Can the DN 50 also be rotated 180 degrees?
Yes, the DN 50 can also be rotated 180 degrees. It is also possible to increase the size of the supply connection. However, it should not be reduced in size.
Are custom design requests for the boot cleaning system possible?
Yes, custom requests are possible depending on the scope, as the systems are built to order.
How does the odor trap of the boot wash station work?
The operating principle is similar to that of a siphon: a small amount of water remains in the curved section of the drainpipe, creating a barrier that prevents unpleasant odors or gases from the sewage system from entering the room.
